LAP Electrical Automotive Products

LTB LED Beacons (ECE R65)



LTB LED Beacons (ECE R65) Our new economical LTB range combines 45 ultra-bright LEDs with advanced optics to provide R65 approved light output.

Main Features:
  • ECE R65 approved
  • EMC (ECE R10) approved
  • Multi-voltage (10-30V)
  • 40mph rated on magnetic versions
  • 2 selectable flash patterns: double flash (R65 approved - amber lens only) and simulated rotating
  • Meets IP56 international protection standards
  • Low power consumption: 2A @ 12V & 1A @ 24V
  • -30°C to +50°C extreme temperature reliability
  • Integral flash pattern selector
  • Polycarbonate lens
  • Available with green lens
  • 2 year warranty

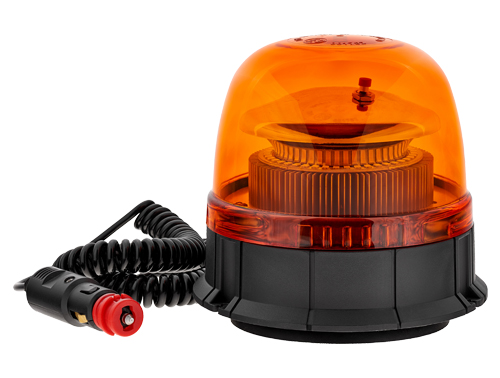

LTB020 (Magnetic)
LTB020 (Magnetic)

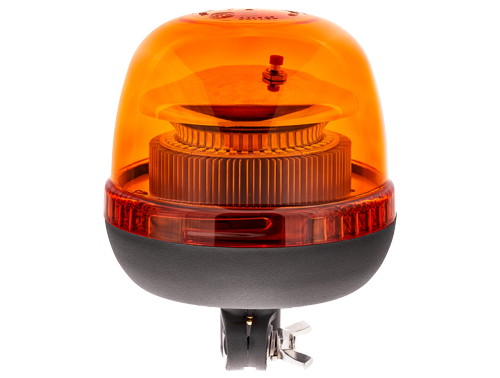

LTB030 (DIN)
LTB030 (DIN)

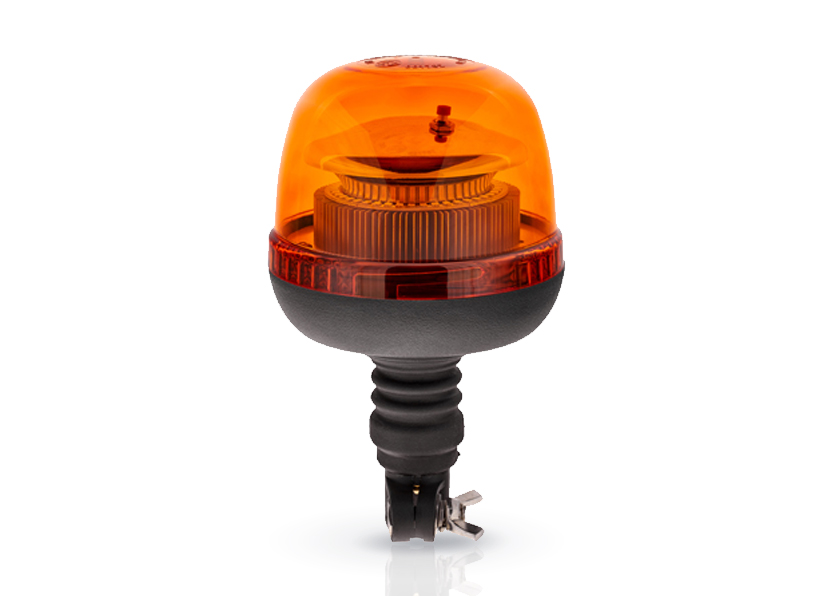

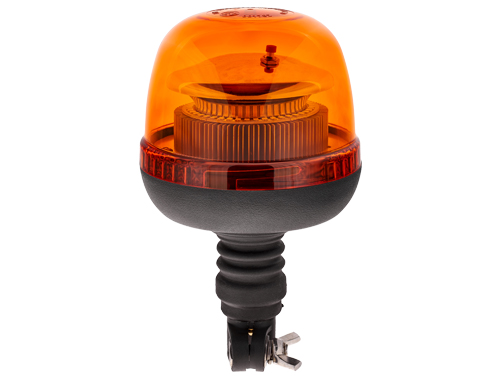

LTB040 (Flexi-DIN)
LTB040 (Flexi-DIN)

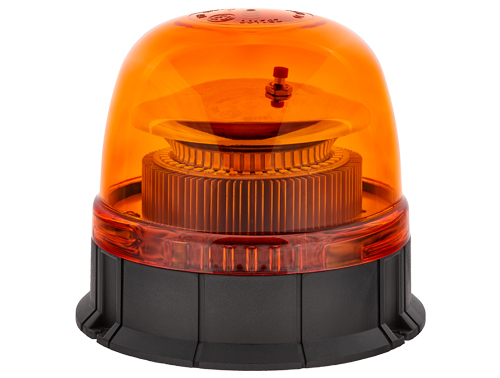

LTB050 (3-Point)
LTB050 (3-Point)

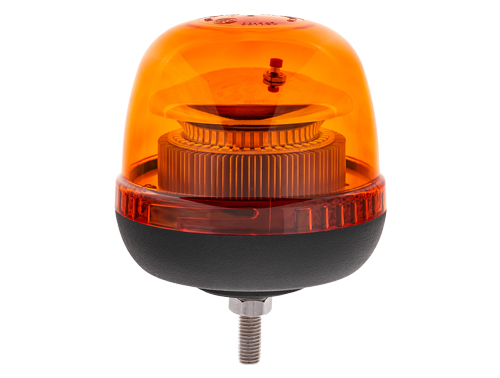

LTB060 (Single Point)
LTB060 (Single Point)

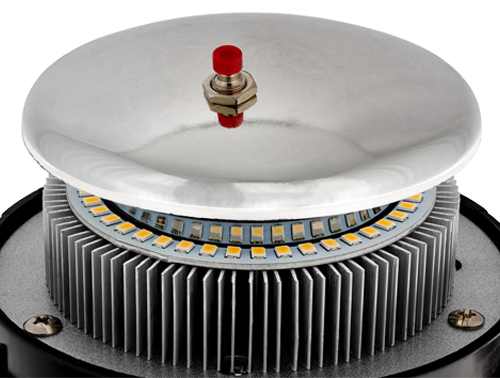

LTB Reflector & Switch
LTB Reflector & Switch

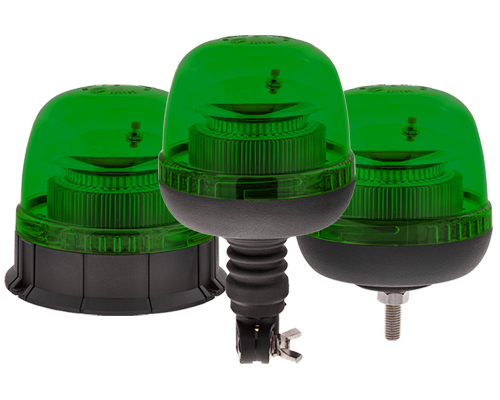

LTB Range Also Available with Green Lenses
LTB Range Also Available with Green Lenses
LTB LED Beacons (ECE R65)

Click here to download a product specification
