PCV Valve Features



What The PCV System Does

In petrol engines small amounts of combustion gases seep past the piston rings into the crankcase. These crankcase blow-by gases contain undesirable hydrocarbon air pollutants.

To prevent these vapours from escaping into the atmosphere, while allowing proper ventilation of the crankcase, the positive crankcase ventilation (PCV) system is used.
How The PCV "Closed" System Functions

The closed PCV system is similar in operating principle to the open system, except... fresh air enters the closed system from the clean air side of the air cleaner or a separate PCV breather filter on the inside periphery of the air cleaner, or in the line from the rocker arm cover to the air cleaner.

The closed system is more effective in preventing air pollution than the open system because it is completely encased. If pressure builds up in the crankcase on an engine with the closed system, such as with plugged PCV valve hose or fittings, the blow-by gases will be forced into the air cleaner. This happens because all other outlets are sealed. When these vapours pass through the air cleaner, they are mixed with fresh air and routed via the intake manifold back into the combustion chamber to be burned.
Design Features Of PCV Valves

All PCV Valves are designed to precise customer specifications.

The heat treatment of the PCV Valve orifice and pintle ensures guaranteed durability, thus every PCV Valve maintains its closely-held manufacturing tolerances throughout it's working life. Over time this design has proven itself to be service-free in excess of 150,000km.

The latest designs have PA moulded top connectors allowing the PCV Valve to be friction welded into the engine cam cover assembly, reducing installation costs and eliminating service sealing issues.

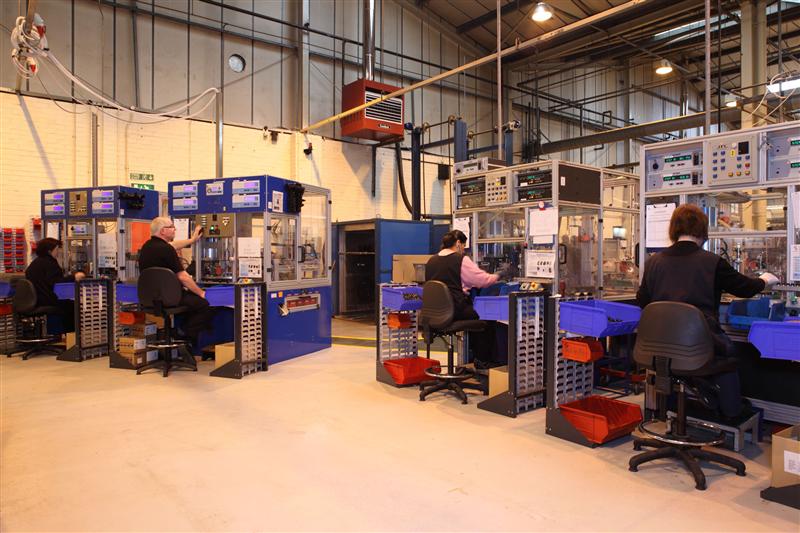

PCV Cell
PCV Cell

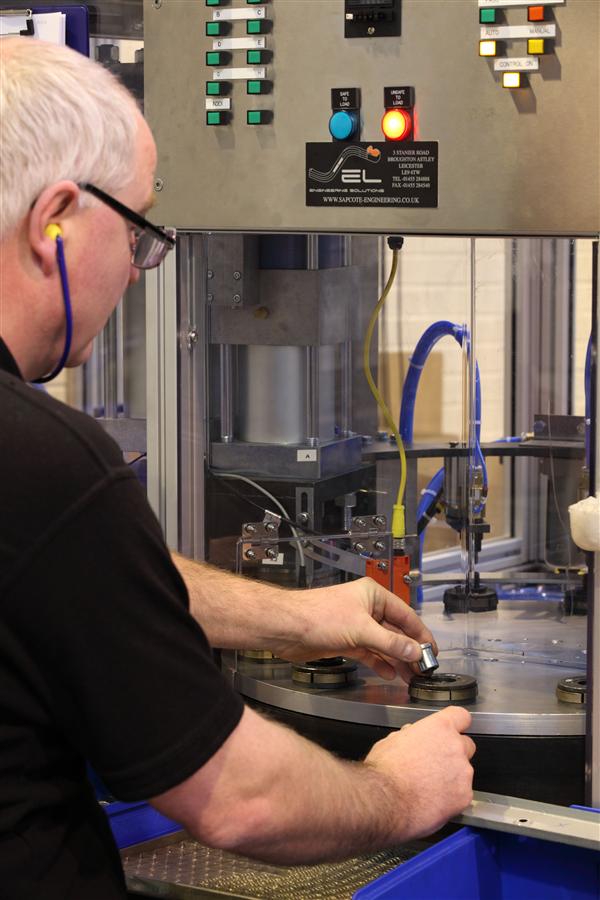

Assembly & 100% Test
Assembly & 100% Test

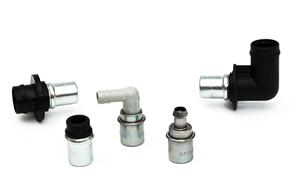

PCV Valves
PCV Valves

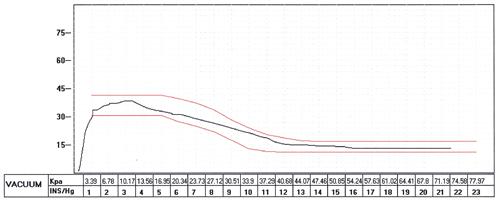

Flow Curve
Flow Curve
How the PCV system works
How the PCV system works

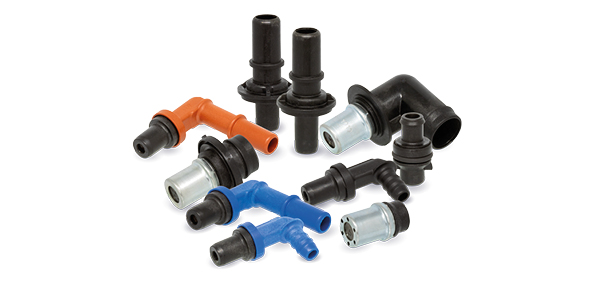

PCV Valves
PCV Valves
Plastic Top Valves
Plastic Top Valves

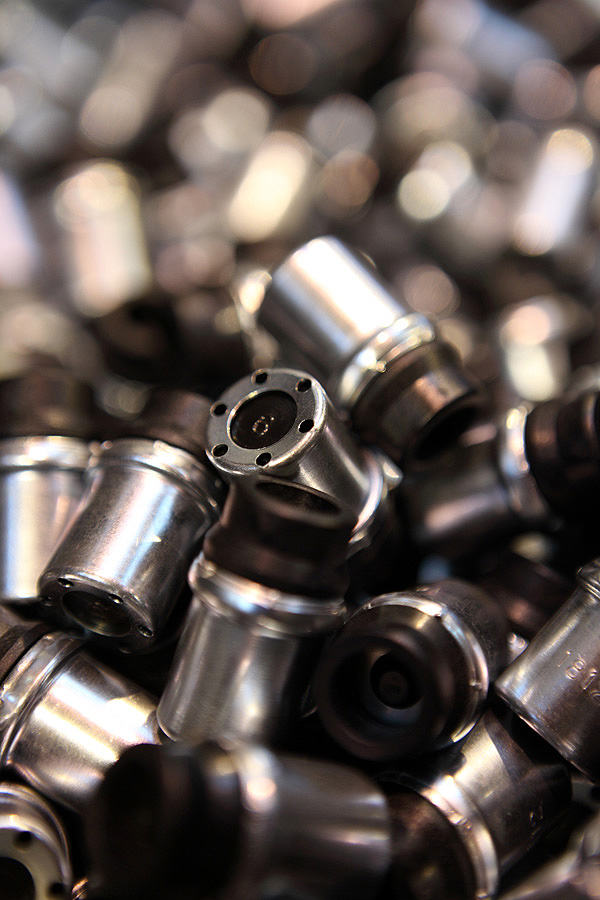

Metal Top Valves
Metal Top Valves
PCV Valve Features

Driven by Quality


LAP is a highly-accredited company - and due to its strong emphasis on quality control and complete focus on Total Quality Management principles, holds key Automotive industry-recognised certifications.
