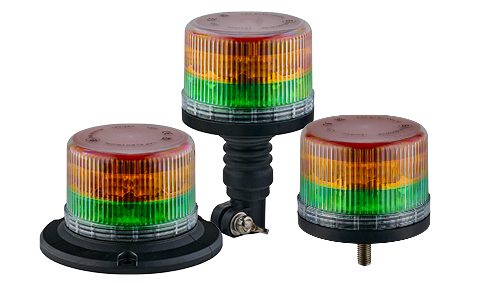

LXB Amber & Green Combo Beacon



LXB Amber & Green Combo Beacon The LXB range combines amber and green LEDs in one to eliminate the need for 2 separate beacons. An ideal solution where green beacon seat belt warning systems are required such as plant and agricultural applications.

Main Features:
  • EMC (ECE R10) approved
  • Multi-voltage (10-30V)
  • Three selectable flash patterns (single, double and rotating)
  • Manufactured with 12 x 3W amber and 12 x 3W green LEDs
  • Alternate amber and green flash when seat belt is engaged
  • Amber only flash when seat belt is disengaged
  • IP65 ingress protection
  • -30°C to +50°C extreme temperature reliability
  • Integral flash pattern selector
  • Quick-release mini plug on LXB040AG (flexi-DIN) for simple swap if beacon is damaged
  • 2 year warranty

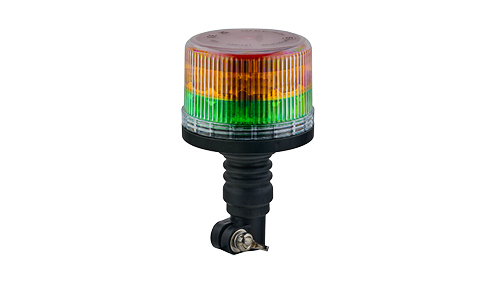

LXB040AG (Flexi-DIN)
LXB040AG (Flexi-DIN)

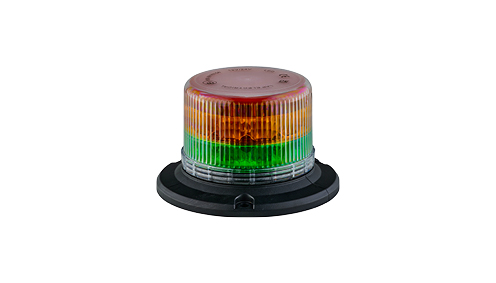

LXB050AG (3-Point)
LXB050AG (3-Point)

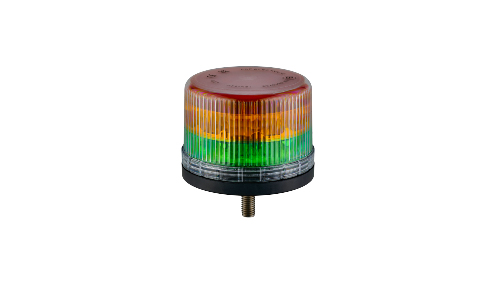

LXB060AG (Single Point)
LXB060AG (Single Point)
LXB Amber & Green Combo Beacon

Click here to download a product specification
