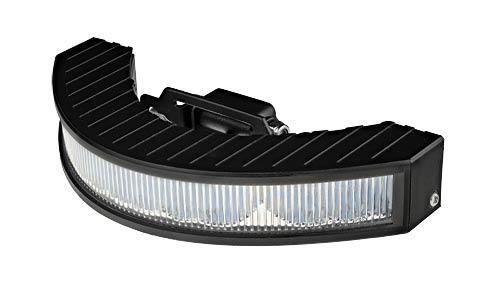

CLED12A (IP69K)



CLED12A (IP69K) Our corner LED modules provide ECE R65 approved light output and can be mounted on each corner of a vehicle to provide 360° of visual warning light.
Main Features:
  • ECE R65 approved
  • EMC (ECE R10) approved
  • Multi-voltage (10-30V)
  • 12 x 5W LED lights
  • Single & double flash meets R65 approval
  • IP69K rated ingress protection
  • 26 flash patterns
  • Multiple units can be linked for synchronised flash
  • Variable angle bracket included
  • Current consumption: 3.8A @ 12V, 1.8A @ 24V
  • Dimensions: 170 (L) x 80 (W) x 30mm (D)
  • Steady on function
  • 2 year warranty

CLED12A
CLED12A
CLED12A (IP69K)

Click here to download a product specification
