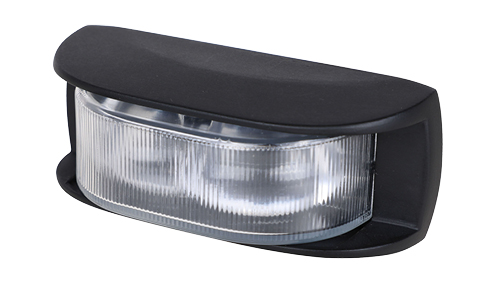

CLED14 (IP69K)

The CLED14 corner LED modules provide ECE R65 approved light output and can be mounted on each corner of a vehicle to provide 360° of visual warning light.

---

Main Features:

• ECE R65 class I and class II approved
• EMC (ECE R10) approved
• Multi-voltage (10-30V)
• Available in amber or blue models
• 12 x 3W LED lights
• Single, double and quad flash meets R65 approval

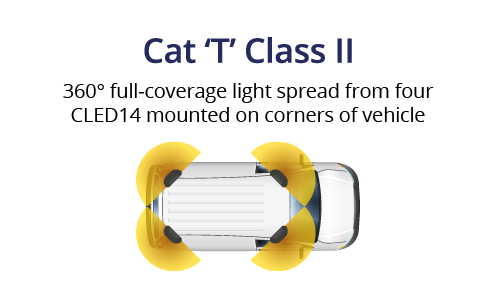

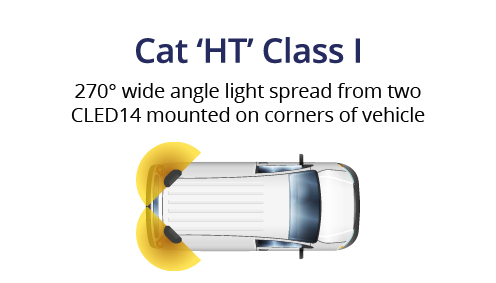

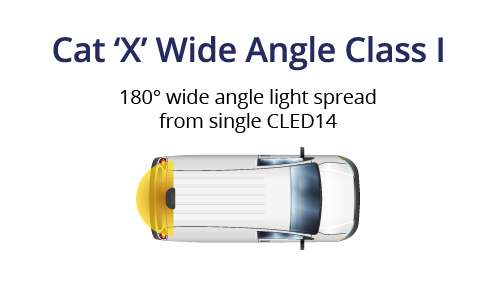

• Three R65 approved categories (1 x CLED14 meets 'X', 2 x CLED14 meets 'HT', 4 x CLED14 meets 'T')
• IP69K rated ingress protection
• 19 flash patterns
• Multiple units can be linked for synchronised or alternate flash

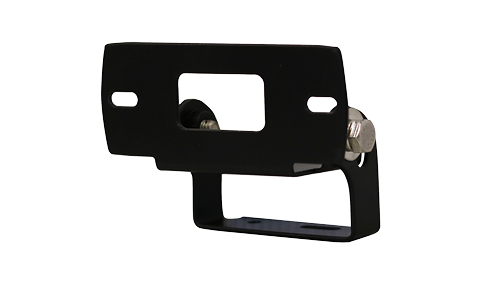

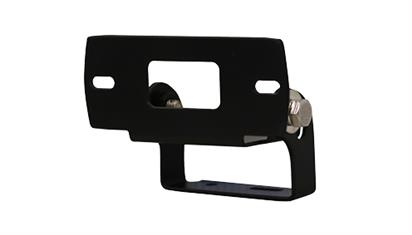

• Variable angle bracket included
• Current consumption: 0.4A @ 12V, 0.2A @ 24V
• Dimensions: 90 (L) x 35 (W) x 35mm (D)
• Steady on function
• 3 year warranty

---
