LAPCV413 Series

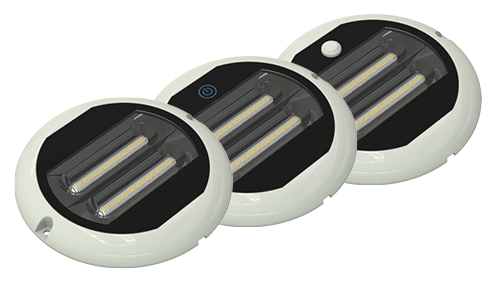

LAPCV413 Series New for 2024, the LAPCV413 LED interior lamp series is 130mm in diameter and backed by our 3 year warranty and is available in 3 operating modes.
Main Features:
  • Multi-voltage operation (10-30V)
  • EMC (ECE R10) approved
  • Heavy duty metal housing
  • Direct feed, touch switch and PIR sensor options
  • 130 (diameter) x 13mm (height)
  • IP68 ingress protection
  • 1147 effective Lumen
  • Manufactured with 28 x 1W OSRAM LEDs
  • 6000K cool white colour temperature
  • Supplied with 200mm cable length
  • 3 year warranty

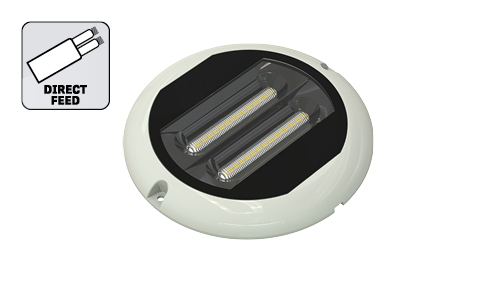

LAPCV413/DF (Direct Feed)
LAPCV413/DF (Direct Feed)

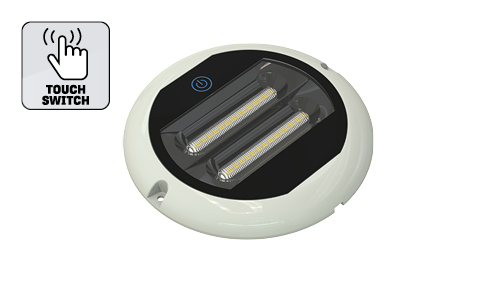

LAPCV413/TS (Touch Switch)
LAPCV413/TS (Touch Switch)

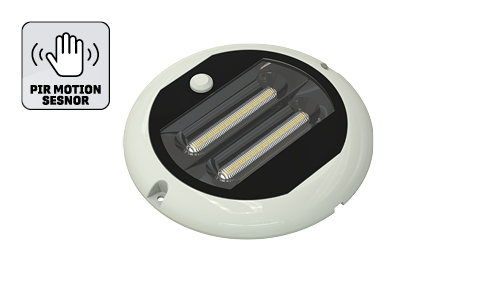

LAPCV413/PIR (Motion Sensor)
LAPCV413/PIR (Motion Sensor)
LAPCV413 Series

Click here to download a product specification
NQA IATF 16949 and ISO 14001 Registered

Driven by Quality


LAP is a highly-accredited company - and due to its strong emphasis on quality control and complete focus on Total Quality Management principles, holds key Automotive industry-recognised certifications.
